MOQ 100 sqm

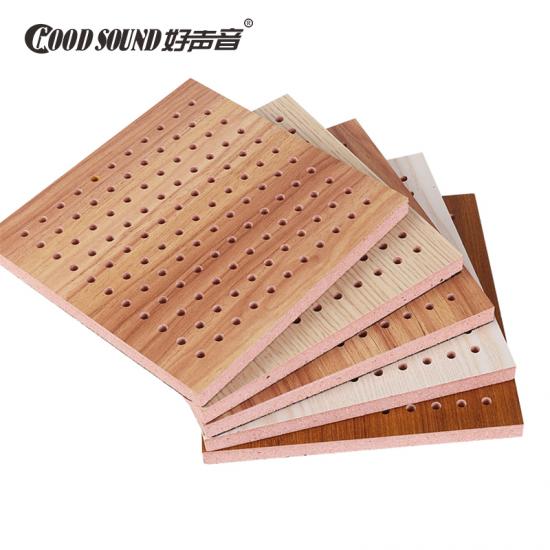

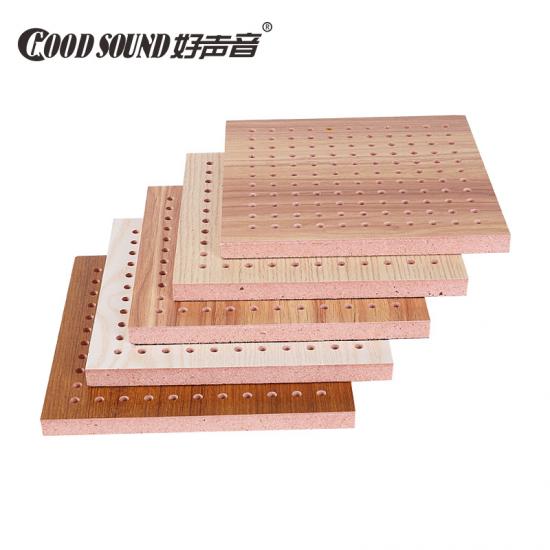

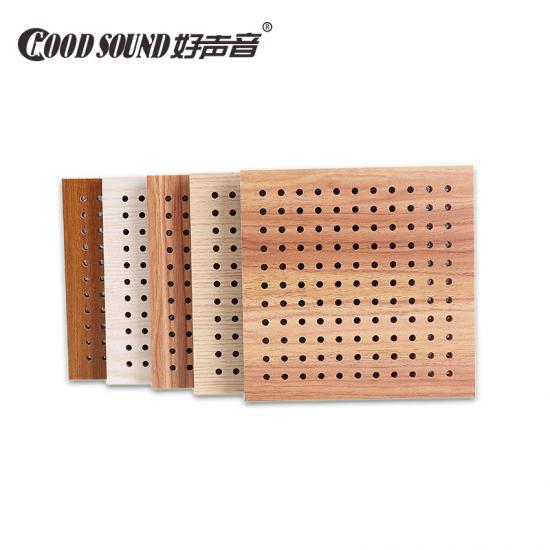

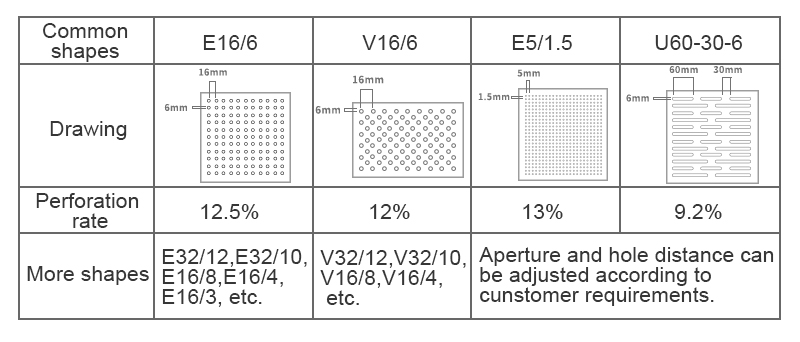

Wooden Perforated Decorative Acoustic Panel is a kind of reasonant sound absorption material directly perforated on density board. Perforated Acoustic Panel has strong selection on sound absorption spectrum. It has good sound absorption effect of medium and high frequency can be improved with acoustic cotton filled behind the panel cavity. Perforated hole diameter and distance can be adjusted according to customer requirement.
Four advantages of the Perforated acoustic panel:
1> Stable product quality and zero complaints.
2> The sound absorption effect is good, and the decoration is strong.
3> Environmentally friendly and fireproof.
4> Wide range of applications: Various places with high acoustic requirements.
| Product Type | Wooden perforated decorative sound absorbing wall panels |
| Common Size | W: 600mm,1200mm,1220mm |
| L: 600mm,1200mm,2400mm,2440mm | |
| T: 12mm,15mm,18mm | |

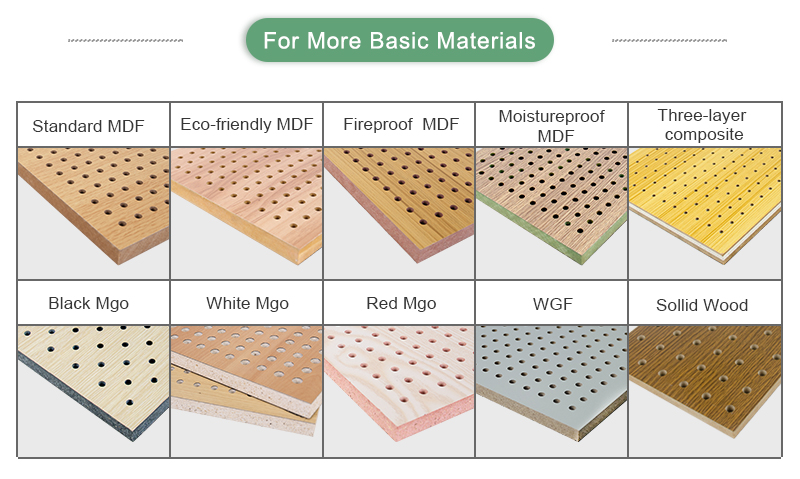

| Basic Material | Standard MDF, Eco-friendly MDF, Fireproof MDF, Moistureproof MDF, Sollid Wood, etc. |
| Finish | Melamine, Natural Wooden Veneer, Fireproof board, Painting, Metal, Technology veneer, Leather etc. |
| Color | Many colors in stock and can be customized |
| Fireproof Grade | B1 |
| Eco Grade | E1 |
| Application | Gymnasium,Meerting Room,Multi-function Hall,Auditorium,Conference Room,Banquet Hall,etc. |
| Install | Provide professional after-sales installation training, if necessary, we can travel to the site to guide the construction. |
Uses:
Acoustic correction. Applicable to walls and ceilings.
Dimensions:
There are versions in large dimension panels for continuous walls and ceilings and also standardised ceiling panels in different versions to install with visible, semi-hidden, hidden and hidden practicable profiling.
Wall Covering Panels:
Used plates are often 2400x1200mm, 2400x600mm and 1200x60mm.(16mm thick)
Ceilings:
It's usually more common to use 12mm thick plates in standardized measures of 1200x600mm, 1200x300mm and 600x600mm, although other combinations are also possible.
Installation systems:
The different plates are available with different finishes depending on the type of perimeter assembly desired.
Materials and finishes:
The support material is always MDF fiberboard wood panels in standard or fireproof versions. Surface finishes can be raw, melamine, plywood, varnished or lacquered. Other options on request.
The panels may incorporate to the back and as an option, an acoustic veil to improve the sound absorbing qualities of the panel.

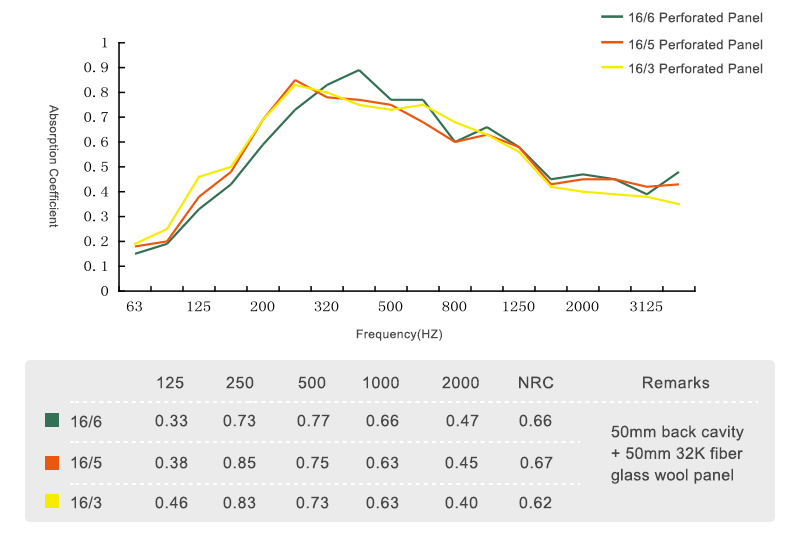

It has strong selection on the sound spectrum and particular great performance on the middle and low frequency.
GOODSOUND perforated acoustic panel is made of high quality MDF board and has outstanding environmental, fireproof and moistureproof waterproof function.
If filled the acoustic cotton at the black side space of the acoustic panel, it has better performance on middle and high frequency.
